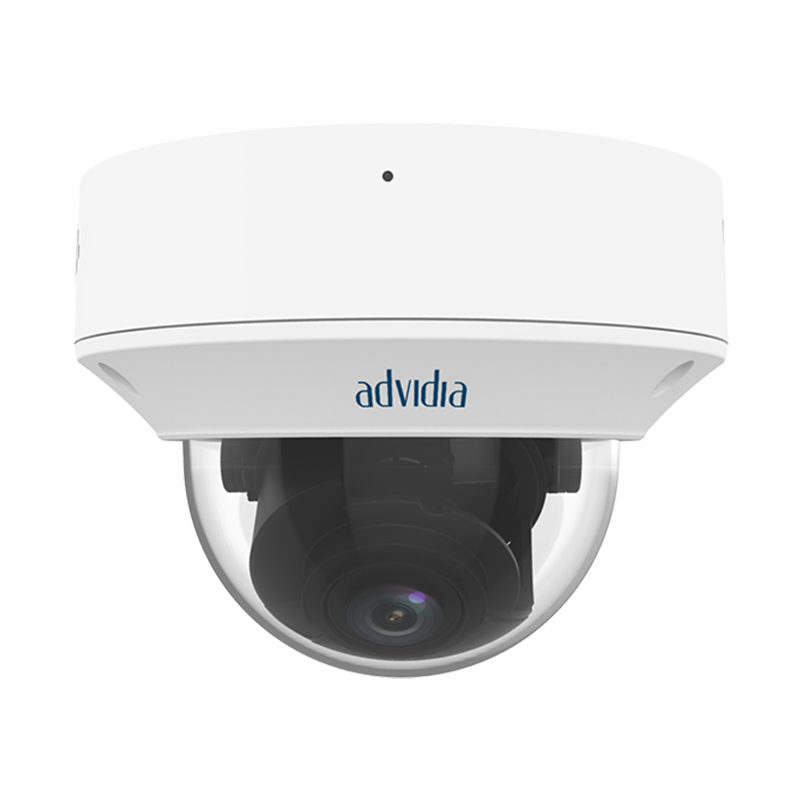

Advidia M-87-V

Description

Specifications:

Device

COMPONENT SPECIFICATION

Image Sensor 1/2.8″ Progressive Scan CMOS

Min Illumination Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR

Shutter Time Auto/Manual, 1 ~ 1/100000s

Lens 2.8 ~ 12mm

WDR 120dB

Angle of View H: 107.4°~ 29.2°, V: 54.2°~ 16.3°, O: 111.0°~33.1°

Angle Adjustment Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate: 0° ~ 355°

3-Axis Adjustment Yes

Day & Night IR-Cut Filter with Auto Switch (ICR)

IR Range Up to 40m (131ft) IR range

Compression Standard

COMPONENT SPECIFICATION

Video Compression Ultra 265, H.265, H.264, MJPEG

Video Bit Rate 128 Kbps~16 Mbps

Tri-Stream Yes

Analytics Cross Line, Intrusion, Enter Area, Leave Area Detection;
Motion Detection, Tampering Alarm, Audio Detection


COMPONENT SPECIFICATION

Max. Image Resolution 3840 x 2160

Frame Rate 20fps (3840 x 2160)

ROI Codec Up to 8 areas

Image Setting White Balance, Digital Noise Reduction, Smart IR, Flip, Dewarping, HLC, BLC

Network

COMPONENT SPECIFICATION

Alarm Channels 1 Channel In | 1 Channel Out

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP

Interface

COMPONENT SPECIFICATION

Communication Interface 1 RJ45 10M/100M Base-TX Ethernet

System Compatibility ONVIF (Profile S, Profile G, Profile T), API

Local Storage Micro SD, up to 256GB

Audio
Input: Impedance 35kΩ; Amplitude 2V [p-p]
Output: Impedance 600Ω; Amplitude 2V [p-p]
Built-in Mic or External Audio Input/Output

General

COMPONENT SPECIFICATION

Operating Conditions
Temperature: -30°C ~ 60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (Non-Condensing)

Power Consumption Max 9.0W

Power Supply DC 12V±25%, PoE (IEEE 802.3af)

Weather Proof Rating IP67

Vandal Resistant IK10

Dimensions Φ148 x 111mm (Ø5.8” x 4.4”)

Weight 0.97kg (2.14lb)

Software Includes Video Insight VMS License

Warranty 4 Year Advanced Replacement
