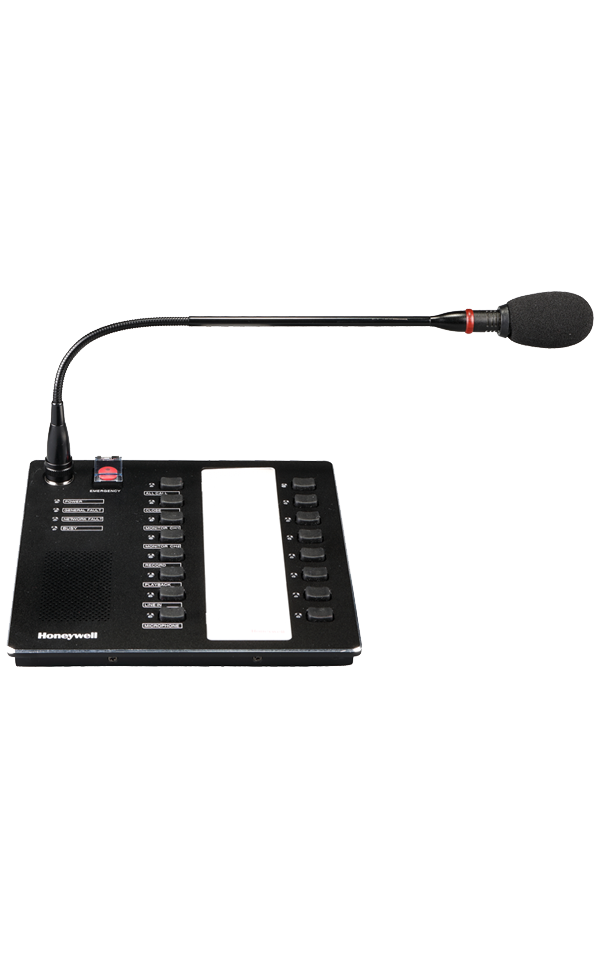

Honeywell HMC-2000
Contact
The zone selection call station features a built-in monitoring speaker and programmable buttons.
The HMC-2000 zone selection call station for the INTEVIO system allows users to broadcast live paging announcements and trigger background music, service broadcasts or emergency broadcasts. They can also record temporary messages and broadcast them immediately without any configuration. The built-in speaker can monitor the audio source (channels 1 and 2) to avoid accidental broadcasts. Features such as volume control, 8 freely configurable buttons and automatic fault detection make the HMC-2000 ideal for use in locations where public message updates are required frequently.
FEATURES
– Power supply voltage: DC 24 V
– Line input signal-to-noise ratio: >90 dB, A weighted
– Microphone input frequency response: 100 Hz – 10 KHz
– Rated power: 10 W
– Humidity: < 95%, non-condensing
– Net weight: 1.4 Kg
Description
Specifications:
Model No. HMC-2000
Main Power Supply Voltage DC 24V
Rated Power 10 W
Gross Weight 2.5Kg
Humidity < 95%, without condensing
Operating Temperature -10°C~+55°C(14°F to +131°F)
Storage Temperature -40°C~+70°C(-40°F to +158°F)
Product dimensions (W×H×D) 200 × 146.5 × 1 200 mm
Package dimension (W×H×D) 403 × 1 133 × 1 268mm
Net Weight 1.4Kg
Mic Input Sensitivity 5mV
Mic Input Impedance 600Ω
Mic Input Frequency Response 100 Hz -10KHz
Mic Input SNR >77dB, A weighted
Mic Input THD <0.5%
Mic Input Optimal Pickup Distance 10~20cm
Line Input Signal 1V(0dBV)
Line Input Impedance 10 KΩ
Line Input Frequency Response 50Hz-18KHz
Line Input SNR >90dB, A weighted
Monitoring Loudspeaker 2W/8Ω
