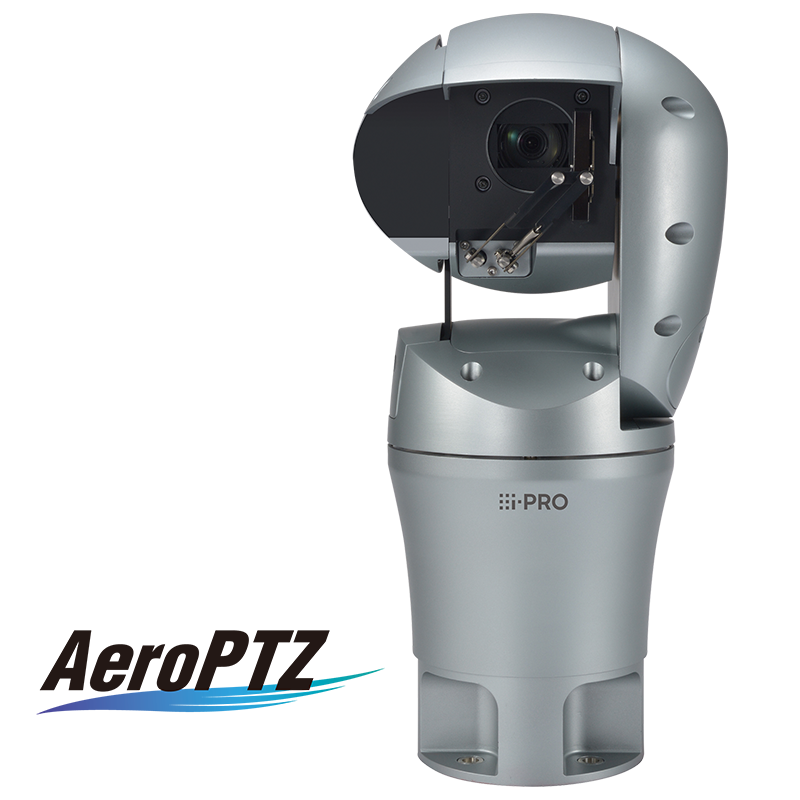

i-PRO WV-SUD638

Description

Specifications:

Camera

Image Sensor Approx. 1/3 type MOS image sensor

Minimum Illumination
Color : 0.06 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High)
0.004 lx (F1.6, Maximum shutter : max. 16/30 s, AGC : High)*
BW : 0.02 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High)
0.001 lx (F1.6, Maximum shutter : max. 16/30 s, AGC : High)*
0 lx (F1.6, Maximum shutter : Off(1/30 s), AGC : High,
when the IR LED (Optional) is lit)
* Converted value

Super Dynamic Dynamic Range 105 dB typ.

Image Settings Gain (AGC), White balance

Image Compression
Adaptive black stretch, Back light compensation (BLC),
Fog compensation, High light compensation (HLC),
Digital noise reduction

Shutter Speed
[2 mega pixel [16 : 9] (60 fps mode)]
Off(1/60) to 1/10000
Other than [2 mega pixel [16 : 9](60 fps mode)]
Off(1/30) to 1/10000

Day/Night (ICR) Off / On / Auto1(Normal) / Auto2(IR Light) / Auto3(SCC)

IR LED Light (Optional) Off / Auto (High / Mid / Low) irradiation distance : 150 m (500 feet)

Image Stabilization On / Off *Hybrid image stabilizer

Privacy Zone Gray / Mosaic / Off (up to 32 zones available)

Camera Title on Screen Up to 20 characters (alphanumeric characters, marks)

Video Motion Detection (VMD) On / Off, 4 areas available

Lens

Zoom Ratio
30x / 45x with HD extra optical zoom (at 1280 x 720)
(Motorized zoom / Auto Focus)

Digital (Electronic) Zoom x1, x2, x4

Focal Length 4.3 mm – 129 mm {3/16 inches – 5-3/32 inches}

Maximum Ratio Aperture 1 : 1.6 (WIDE) – 1 : 4.7 (TELE)

Focus Range 2.0 m – ∞

Aperture Range F1.6 (WIDE) – Close

Angular Field of View
[16 : 9 mode] Horizontal : 2.3° (TELE) – 64° (WIDE)
Vertical : 1.3° (TELE) – 38° (WIDE)
[4 : 3 mode] Horizontal : 1.8° (TELE) – 50° (WIDE)
Vertical : 1.3° (TELE) – 38° (WIDE)

Pan/tilt unit

Panning Range 360° endless

Panning Speed
Manual : approx. 0.065°/s to 100°/s
Preset : up to approx. 200°/s
(Except when IR LED Unit is equipped, forward tilt mount, frozen.)

Tilting Range
Upright : –45° to +90°
Forward tilt : –90° to +90°
Hanging : –90° to +30°

Tilting Speed
Manual : approx. 0.065°/s to 100°/s
Preset : up to approx. 200°/s
(Except when IR LED Unit is equipped, forward tilt mount, frozen.

Preset Positions 256 positions

Auto Mode
Auto track / Auto pan / Preset sequence / 360 map-shot /
Preset map-shot / Patrol

Self Return 10 s to 60 min

Tilt Flip On / Off

Map Shot 360° map shot / preset map shot

Network

Network IF 10Base-T / 100Base-TX, RJ45 connector

Image Resolution
•2 mega pixel [16 : 9] (60 fps mode / 30 fps mode)
H.264 : Maximum 1,920 x 1080
JPEG : Maximum 1,920 x 1080
•1.3 mega pixel [4 : 3] (30 fps mode)
H.264 : Maximum 1,280 x 960
JPEG : Maximum 1,280 x 960

Image Compression Method
H.264
Transmission Mode :
Constant bit rate / Variable bit rate / Frame rate priority /
Best effort / Advanced VBR
Transmission type : Unicast / Multicast
JPEG
Image Quality : 10 steps
Multiple streams individually congurable

Intelligent Compression Smart coding, VIQS (ROI)

Audio Compression
G.726 (ADPCM) : 16 kbps / 32 kbps
G.711 : 64 kbps
AAC-LC : 64 kbps,
AAC-LC(High quality) : 64 kbps / 96 kbps / 128 kbps

Protocol
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP,
SNMP, DHCPv6, RTP, MLD, ICMP, ARP, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,
ARP, DiffServ

Maximum Concurrent Access Number Up to 14 users (Depends on network conditions)

Mobile Terminal Compatibility
iPad, iPhone, iPod touch (iOS 4.2.1 or later)
AndroidTM mobile terminals

Environment

Water and Dust Resistance
Main body : IP66, IP67, IEC60529 measuring standard compatible,
Type 4X(UL50), NEMA 4X compliant
Waterproof RJ45 connector, Waterproof power connector,
Waterproof I/O connector

Shock Resistance Compliant with IK10 (IEC 62262)

Salt Damage Resistance ISO14993 compliant

Resistance to Wind
Upright
216 km/h (135 mph) (Operation) / 288 km/h (180 mph) (non-destructive)
Forward tilt
50 m (112 mph) (Operation) / 80 m (180 mph) (non-destructive)

General

Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1

EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassA, EN55035

Power Source
AC100 to 240 V, 50 Hz / 60 Hz
Tested PoE Injector* (60 W) *with limitations

Operating Environment
Ambient operating temperature :
AC100 to 240 V : –50 °C to +60 °C {–58 °F to 140 °F}
(Power On range : –30 °C to +60 °C {–22 °F to 140 °F})
When using the tested PoE injector :
–30 °C to +60 °C {–22 °F to 140 °F}
When using the tested PoE injector and IR LED unit at the same time:
–20 °C to +55 °C {–4 °F to 131 °F})
*The upper limit value of ambient operating temperature indicates
the use of WV-SUD638 (natural silver). In cases of products with
other body colors, the upper limit value is +55 °C {131 °F}.
*When WV-SUD6FRL1 (IR LED unit) is attached, the upper limit
value of ambient operating temperature is +55 °C {131 °F}.
Ambient operating humidity : 10 % to 100 %

External I/O Terminals
ALARM IN 1(DAY/NIGHT IN, Auto time adjustment),
ALARM IN 2(ALARM OUT), ALARM IN 3(AUX OUT),
Relay connection (x1 for each)

Line Input
ø3.5 mm monaural mini jack
Input impedance : Approx. 2 kΩ (unbalanced)

For line input
Input level : Approx. –10 dBV

Audio Output
ø3.5 mm stereo mini jack (monaural output)
Output impedance : Approx. 600 Ω (unbalanced)
Using Amplifier built-in external speaker
Output level : –20 dBV

Monitor Output –

Dimensions
220 mm (W) x 450 mm (H) x 266 mm (D)
{8-21/32 inches (W) x 1ft 5-23/32 inches (H) x 10-15/32 inches (D)}

Mass (Approx.) Approx. 8.5 kg {18.7 lbs}

Finish
Main body : Glass Fiber Reinforced Plastics
WV-SUD638 : Natural Silver
WV-SUD638-H : Gray (N7)
WV-SUD638-T : Brown (Environmental color)
Front glass : Glass, Clear
