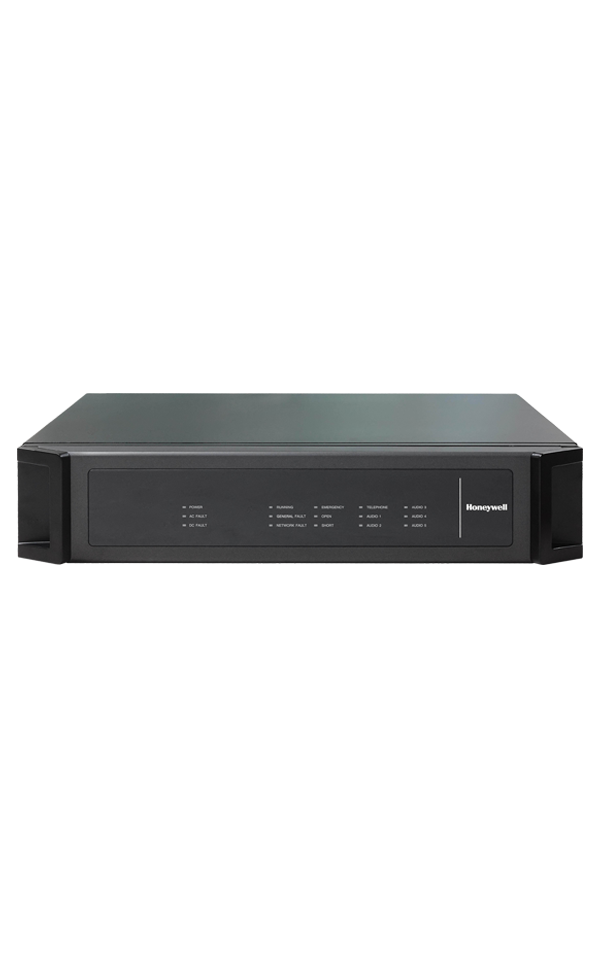

Bộ giao diện tài nguyên mạng PAVA Honeywell X-NRI/EN

Description

Thông số kỹ thuật:

Main power supply -100 – 240 V, 50/60 Hz

Backup power supply DC 21 5 V – 28 5 V

Main power fuse T2 AL 250 V

Rated power 15 W

Auxiliary input

Input channels 4

Input signal 1 V 0 dBV

Input impedance 20 kΩ

Frequency response 60 Hz 16 kHz

S/N > 85 dB

Balanced Input

Input channels 4

Input signal 14 mV (-37 dBV) / 1 V(odBV)

Input impedance 20 kΩ

Phantom power supply DC 24 V

Frequency response 60 Hz -16 kHz

S/N > 65 dB

Control Terminal

Trigger inputs 32 inputs (can be monitored)

Trigger outputs(reserved) 8 outputs (NO, NC and COM)

Max working voltage AC 250 V / DC 30 V

Max working current 2.5 A

Others

Network interface 2.5 A

Number of ports 4

Audio Storage 4 GB SD card, 1 GB Flash

Working environment

Humidity 95 %, non condensing

Operating temperature -10 °C ~ +55 °C

Storage temperature -40 °C ~ +70 °C
