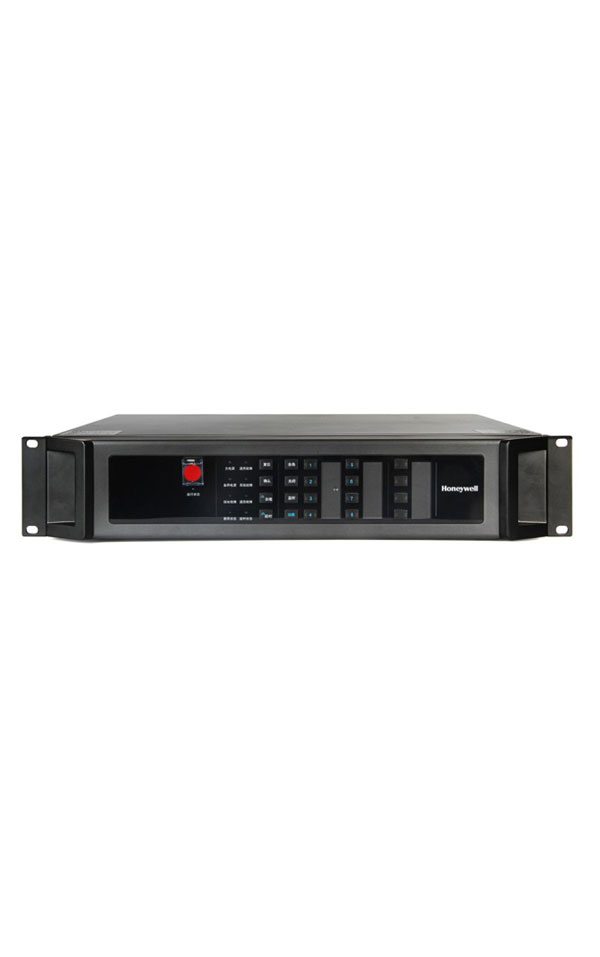

Bộ xử lý trung tâm kỹ thuật số PAVA Honeywell X-DCS2000

Description

Thông số kỹ thuật:

Model No. X-DCS2000

Backup power supply voltage DC 21.5V-28.5V

Dimension (W x H x D) 482 mmx88 mm x420mm

Main Power Supply Voltage AC 100-240V, 50/60Hz

Rated Power 50W

Packing Dimension (W×H×D) 580mmx235mm x552mm

Gross Weight 12.5Kg

Main Power Supply Fuse T2AL250V

Auxiliary input Frequency response 60Hz-16KHz (local input signal)

Auxiliary Input SNR >85dB

Loudspeaker Circuit Channels 8 (with circuit fault detection)

Audio Output Channels
8 channels main power amplifier,
2 channels standby power amplifier,
2 channels auxiliary output

Audio Output signal 1.2V(<1.6dBV)

Audio Output THD <0.06%

Contact Inputs 8(with circuit fault detection)

Contact Outputs 8 outputs (NO, NC and COM)

Auxiliary input Channels 3

Auxiliary Input impedance 10KΩ

DCL Inputs Channels 8

DCL Module Number 5 modules per channel

DCL Module Type Noise Detector, EOL module

Loudspeaker circuit Output Voltage 100V

Memory Capacity 1 GB (606MB for audio files)

Loudspeaker circuit Max. Output load power 500W

Humidity <95%, without condensing

Maximum voltage of the outputs 250V AC / 30V DC

Storage Temperature -40 °C ~ +70 °C

Maximum current of the outputs 2.5A

Ethernet interface 10M/100M

Net Weight 9.3Kg

Ethernet switching 4 ports

Working temperature -10 °C ~ +55 °C

Auxiliary input
AUX1 : 0dBV ( 1V)
AUX2: 3: -40dBV-0dBV

Audio Output Record output 1V(0dBV)

Monitoring Loudspeaker 10W/8Ω
