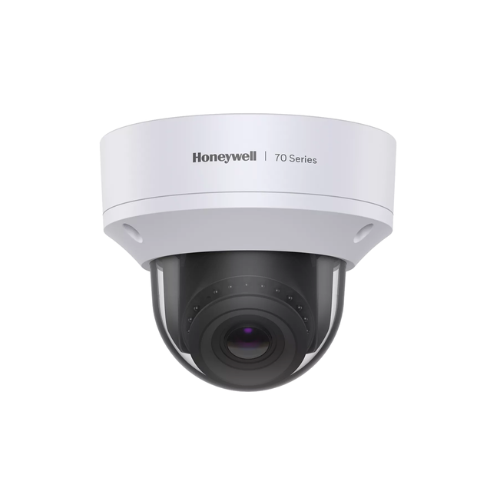

Camera giám sát Honeywell HC70W48R2

Description

Thông số kỹ thuật:

OPERATIONAL

Video Standard NTSC/PAL

Scanning System Progressive

Image Sensor Sony IMX334, 1/1.8 in

Sensor Size (H x V) 7,68 MM x 4,32 mm

Number of Pixels (H x V) 8 MP (3840 x 2160)

Minimum Illumination (Color/BW) Color: 0.005 Lux @F1.5, B/W: 0Lux @F1.5(IR on)

S/N Ratio >50 dB

Electronic Shutter Speed
Exposure mode: manual
min exposure time: 1/32000-1/120
max exposure time: 1/25000-1

IR Distance 40 m

IR Light Control
Smart IR (Auto/Manual 0-100%),
External IR trigger by output

IR Light Number 22

Removable IR-Cut Filter Yes

Day/Night Auto/Day/Night/Schedule

Backlight Compensation WDR, HLC

White Balance Auto/Fixed Current/Manual

Gain Control 0-100 %

Wide Dynamic Range 130 dB

Noise Reduction 3D DNR

Lens Remote Focus, 3,6 mm to 11 mm, MFZ,
P – IRIS, F1.5 ~ F2.8

Angle Of View (H x V) H: 105° ~ 49°, V: 58° ~ 28°

Privacy Masking Off/On (5 areas)

Defog Support

Encryption Chipset Built-in FIPS 140-2 certified encryption chipset

Local Storage
2 Micro SD/SDHC/SDXC card slot
(up to 1 TB each), SD card encryption

Micro USB Support Wi-Fi dongle configuration

Alarm Inputs / Outputs 1 In/1 Out

VIDEO

Smart Video Analytics (Built-in) Intrusion detection, loiter detection, line crossing, face detection, object left unattended, object removed, motion detection, tampering detection

Video Analytics (Additional license required)
License plate recognition
Facial Recognition (Facial Recognition Add-On,
SW and external server are required)

Video Compression H.265 HEVC/H.264/MJPEG, Smart Codec

Resolution (16/9)
3840 x 2160 (8 M) , 3264 x 1840(6 M), 2592 x
1944 (5 M) , 2688 x 1520 (4 M) , 2048 x 1536
(3 M) , 1920 x 1080 (2 M) , 1280 x 960 , 1280
x 720 (1 M) , 800×600 , 640 x 480 , 640 x 360 ,
320 x 240

Number of Video Streams 3

Frame Rate Main Stream 30 fps (8 M mode), 60 fps (2 M mode)

Frame Rate Second Stream 30 fps (8 M mode), 60 fps (2 M mode)

Frame Rate Third Stream 30 fps (8 M mode), 60 fps (2 M mode)

Bit Rate 16K to 80M bps

AUDIO

Audio Compression G.711a/G.711Mu/G.726

Audio Stream Full duplex, simplex

Audio Interface Line in/out

NETWORK

Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers Mozilla Firefox™, Chrome™, Microsoft® Edge™

Supported OS Microsoft® Windows™ 10

Protocols*
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/
RTP/RTCP, IGMP/Multicast, SMTP, DHCP, NTP,
DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP,
ICMP, ARP, TLS

Interoperability ONVIF Profile G/S/T

Maximum Users Access 10 users

Security
User account and password protection, HTTPS,
IP filter, digest authentication, TLS1.2 only,
stream encryption, AES128/256, SSH/Telnet
closed, PCIDSS compliance, FIPS 140-2 certified
chipset built-in, UL 2900-2-3, Security Level L3

Languages Supported English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese

EVENTS

Event type Video analytics, periodically, alarm input, system boot, recording notification

Event linkage Event notification using digital output, HTTP, e-mail and MicroSD card

Region Of Interest 6

ELECTRICAL

Power Supply AC24 V , PoE (IEEE 802.3af, Class 3)

Power Consumption (Max) 13 W

MECHANICAL

Dimensions (D x D x H) 147,9 mm x 147,9 mm x 124, 1 mm (5.82 in x 5.82 in x 4.89 in)

Dome Diameter 95,0 mm (3.74 in)

Product Weight 1,08 kg (2.38 lb)

Package Weight 2,14 kg (4.72 lb)

Body Material Metal (die casting aluminum with powder coating)

Color RAL 120-1 (Honeywell white)

ENVIRONMENTAL

Operating Temperature
-40°C to +60°C (-40°F to +140°F)
(65°C [145°F] 4 hours)

Relative Humidity 90 %, non-condensing

Ingress Protection IP66/IP67/NEMA 4X

Impact Resistance IK10

Heater Yes

Gore-Vent Yes
