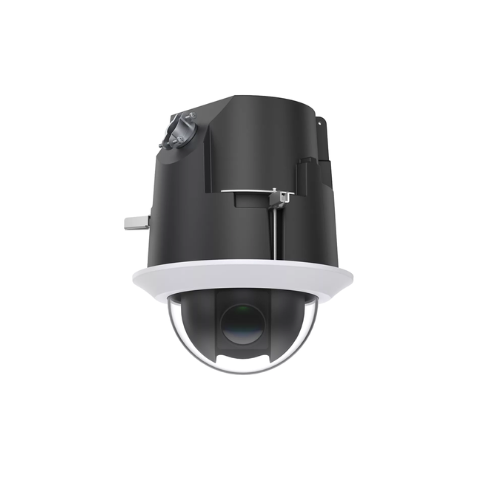

Camera giám sát Honeywell HC70WZ5I30

Description

Thông số kỹ thuật:

OPERATIONAL

Video Standard NTSC/PAL

Scanning System Progressive

Image Sensor IMX335, 1/2.8” CMOS

Sensor Size (H x V) 5.18 x 3.89 mm

Number of Pixels (H x V)
4:3 5MP (2592 x 1944)
16:9 4MP (2560 x 1440)

Minimum Illumination (Color/BW) Color: 0.005 Lux @ F1.4; B/W: 0 Lux @ F1.4 (IR on)

S/N Ratio >50 dB

Electronic Shutter Speed 1/1 ~ 1/32000

Day/Night Auto (ICR) / Color / BW

Backlight Compensation WDR, BLC, HLC

White Balance Auto/Fixed Current/Manual

Wide Dynamic Range 130 dB

Noise Reduction 3D DNR

Lens 30x Optical Zoom, Auto Focus, 5.2mm ~ 148.4mm, DC-IRIS, F1.3 ~ F4.8

Angle Of View (H x V x D) H: 55° ~ 2.64° V: 42° ~ 1.98°

Privacy Masking Off / On (24 Areas)

Defog Support

Angle Of View (H x V) H: 96° ~ 46°, V: 53° ~ 26°

Defog Support

Encryption Chipset Built-in FIPS 140-2 certified encryption Chipset

Local Storage Micro SD/SDHC/SDXC slot, support up to 2TB

Alarm Inputs / Outputs 2 In / 1 Out

PTZ

Pan Speed 0.1° ~ 430° / sec.

Pan Range 360° endless

Tilt Speed 0.1°~200°/sec. (0° to -90° travelling distance)

Tilt Range 0° to -90°, Auto flip
(bubble design, mechanical interference applied)”

Preset Locations 256 presets, 16 tours, 4 patterns

Preset Accuracy 0.1°

Auto Pan Scan Support

Auto Tracking Support

Auto Resume After Power Failure Resume to home position

VIDEO

Smart Video Analytics (Built-in)
Intrusion Detection, Loiter Detection, Line crossing, Face
Detection, Object left unattended, Object Removed, Motion
Detection, Tampering detection

Video Analytics (Additional license required) People recognition, Face recognition

Compression H.265 HEVC/H.264/MJPEG, Smart Codec

Resolution
2592 x 1944 (5M), 2688 x 1520 (4M), 2048 x 1536 (3M),
1920 x 1080 (2M), 1280 x 960, 1280 x 720 (1M), 800 x
600, 640 x 480, 640 x 360, 320 x 240

Number of Video Streams 3

Frame Rate Main Stream 30fps (5M mode), 60fps (2M mode)

Frame Rate Second Stream 30fps (5M mode), 60fps (2M mode)

Frame Rate Third Stream 30fps (5M mode), 60fps (2M mode)

Bit Rate 16K – 80Mbps

AUDIO

Compression G.711/G.726

Stream 2-Way, Full duplex

Interface Line In/Out

NETWORK

Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers Mozilla Firefox, Chrome, Microsoft Edge

Supported OS Microsoft Windows 10

Protocols*
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP,
IGMP/Multicast,SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS,
SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability ONVIF Profile G/S/T

Maximum Users Access 10 Users

Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance,FIPS 140-2 certified
Chipset Built-In

Languages Supported English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese

ELECTRICAL

Power Supply 48VDC / 24VAC (50/60Hz), POE+

Power Consumption (Max) 25W

MECHANICAL

Dimensions (W x H) Ø222.0mm x 267.5mm ( Ø8.74” x 10.53” )

Dome Diameter Ø151.0mm (Ø5.94” )

Product Weight 3.8kg (8.38lb)

Package Weight 4.0kg (8.82lb)

Body Material Polycarbonate / Metal (die casting aluminum with powder coating)

Color RAL 120-1 (Honeywell White)/Pantone Black

ENVIRONMENTAL

Operating Temperature -10°C ~ 50°C ( 14°F ~ 122°F)

Relative Humidity 10% ~ 90%

Ingress Protection IP52

Impact Resistance IK10

Fan Yes
