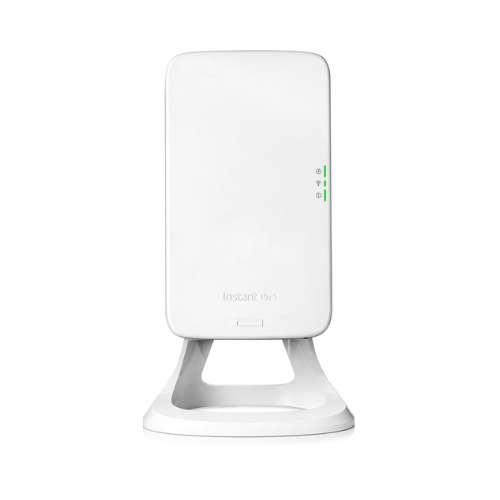

HPE Networking Instant On Access Point AP11D

Description

Thông số kỹ thuật:

Certifications UL 2043 plenum rating
EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

Input voltage Power over Ethernet (POE) on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, POE-out on E3 is disabled
DC power (48V): no restrictions
Power sources are sold separately.

Wi-Fi antenna Integrated directional antennas with maximum individual antenna gain of 4.3dBi in 2.4GHz and 6.2dBi in 5GHz.

Connectivity, standard IEEE 802.11ac, 802.11n

Ports (1) uplink Gigabit Ethernet port (E0), with POE-in support (802.3at/802.3af)
(3) downlink Gigabit Ethernet ports (E1-E3), with POE-out on E3 (802.3af)

Mounting The access point ships with single gang wall-box mount kit and desk mount kit.

Radio coverage Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2×2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Warranty HPE Networking Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

Differentiator HPE Networking Instant On AP11D Desk/Wall Access Points offer a reliable, affordable, and business-grade Wave 2 802.11ac Wi-Fi experience for low- to medium-density small business environments requiring enhanced security and high performance like medical clinics, SOHO, or Airbnb. These cost-effective access points are ideal for small businesses scaling up to 25 access points without additional cost and complexity. Regulatory domain of Rest of World.

Weight 313 g (0.7 lb)

Dimensions 150 x 86 x 40 mm (5.9 x 3.4 x 1.6 in)
