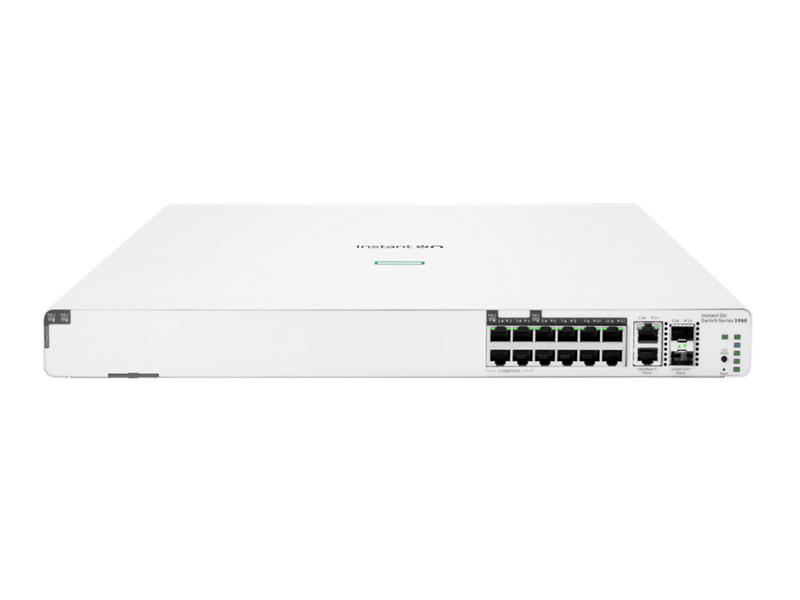

HPE Networking Instant On Switch 8p Gigabit CL4 4p SR2.5G CL6 PoE 2p 10GBT 2p SFP+ 480W 1960 (S0F35A)

Description

Thông số kỹ thuật:

Differentiator
Ports: 48 x 1G + 4 x 2.5 G
Uplink ports: 2 x SFP+ 2 x 10 GBASE-T

Power consumption
Maximum:
100-127V: 635W
200-220V: 623W
Idle:
100-127V: 34W
200-220V: 40W

Input voltage 100-127VAC / 200-240VAC

Ports
4 RJ-45 autosensing 1 G/2.5 GBASE-T
ports with IEEE 802.af/at/bt CL6 PoE

8 RJ-45 autosensing 10/100/1000 BASE-T
ports with IEEE 802.af/at CL4 PoE

(IEEE 802.3u Type 100 BASE-TX, IEEE
802.3ab Type 1000 BASE-T, IEEE
802.3bz Type 2.5 GBase-T, IEEE 802.an
10 GBASE-T);

Duplex: 100 BASE-TX: half or full;
1000 BASE-T: full only
10 GBASE-T: full only

2 SFP+ 10 GbE ports
2 RJ-45 autosensing
100/1000/10 GBASE-T ports

Switching capacity 116 Gbps

Stacking capabilities 4H height

Throughput 172 Mpps

Memory and processor Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB

PoE capability Total 480 W PoE Power

Operating temperature 0-40°C, 0-10,000 ft

Management features HPE Networking Instant On Cloud; Web browser; SNMP Manager

Detailed product description The HPE Networking Instant On Switch Series 1960 is a scalable solution for growing businesses with heavy bandwidth requirements and empowers your network to meet your business growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.

Weight 4.9 kg, maximum, depending on model (10.8 lb, maximum, depending on model)

Dimensions 40.28 x 44.25 x 4.40 cm (15.86 x 17.42 x 1.73 in)
