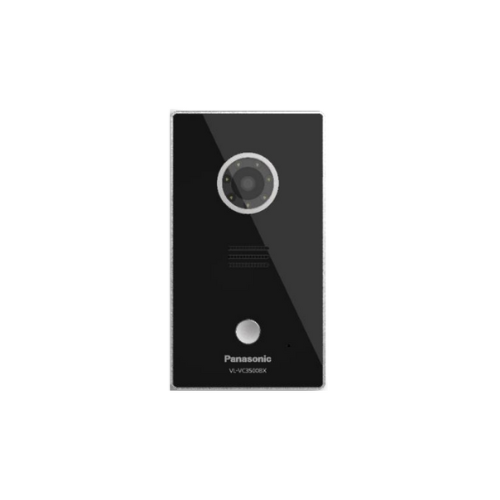

Nút nhấn chuông cửa Panasonic VL-VC3500BX

Description

Thông số kỹ thuật:

System Parameters

Operation system Linux

Flash 16MB

RAM 64MB

Display Parameters

Size —

Operation Method Mechanical Keys

Resolution —

Video Parameters

Video Compression H.264

Video Pixel VGA, 720P

Camera Pixel
2.0M pixels CMOS sensor
1/2.7-inch CMOS sensor
3.7mm EFL

Minimum Illuminance Required 0.01lx (within approx. 50cm from the camera lens)

Camera Quantity Single Camera

HDR –

Viewing Angle 78°(H) / 58°(V)

Lighting Method White coloured LED lights

Audio Parameters

Audio Compression G.711

Speaker 8Ω / 0.5W

Microphone -54 ± 2dB

Face Recognition

Face Capacity —

IC Card

Card Capacity —

Frequency —

Network Parameters

Wiring UTP (Cat 5e or higher)

Protocol IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP

Device Interfaces

Network Interface
RJ45, 10BASE-T/100BASE-TX
(Auto MDI/MDI-X)

Power Out Port —

RS485 Reserved

Relay Output 1

Fire Detect Port —

Lock Release 1

Door Status Port 1

Wiegand Port —

General

Power Source
Power distributor (VL-PC3800BX) or
Power supply unit (Sold separately)

Operating Voltage 12 to 27VDC

Current Rating DC 12V, 500mA; DC 27V, 220mA

Power Consumption Standby: 3.0W, Operating: 6.0W

Installation Method Flush mount

Colour Black

Dimensions (H x W x D) (Excluding protruding sections) Approx. 168mm x 93mm x 32mm

Operating Temperature -20°C to +55°C

Storage Temperature -40°C to +70°C

Operating Humidity Up to 90% (non-condensing)

IP rating (Ingress Protection) IP54

IK rating (Impact Protection) IK04

Talking Method Hands-free

Display Language —

Motion Detect —

External Material AL + Tempered glass

Weight
Without package: 350g
With package: 560g
