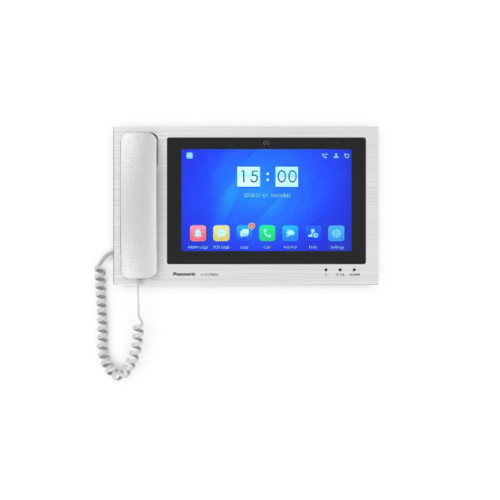

Trạm bảo vệ Panasonic VL-GC3700BX

Description

Thông số kỹ thuật:

System Parameters

Operation system Linux

Flash 256MB

RAM 1GB

Display Parameters

Size 10.1-inch wide colour display

Operation Method Capacitive touch screen

Resolution 1280 x 800

Video Parameters

Video Compression H.264

Video Pixel VGA, 720P

Camera Pixel
1.3M pixels CMOS sensor
1/4-inch CMOS sensor
2.8mm EFL

Camera Quantity Single Camera

HDR —

Viewing Angle 73°(H) / 45°(V)

Lighting Method —

Audio Parameters

Audio Compression G.711

Speaker 8Ω / 0.5W

Microphone -54 ± 2dB

Network Parameters

Wiring UTP (Cat 5e or higher)

Protocol IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP

Device Interfaces

Network Interface RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)

Capacity

Linked IP Camera 24

Text Messages —

Voice Messages 100

Intercom Logs 100

Alarm Logs 100

Recording —

General

Power Source
Power distributor (VL-PC3800BX) or
Power supply unit (Sold separately)

Operating Voltage 12 to 27VDC

Current Rating DC 12V, 670mA; DC 27V, 300mA

Power Consumption Standby: 3.0W, Operating: 8.0W

Installation Method Desktop / Flush mount

Colour Silver colour

Dimensions (H x W x D) (Excluding protruding sections) Approx. 210mm x 336mm x 34mm

Operating Temperature -10°C to +55°C

Storage Temperature -40°C to +70°C

Operating Humidity Up to 90% (non-condensing)

IP rating (Ingress Protection) IP30

IK rating (Impact Protection) —

Talking Method Hands/Hands-free

Display Language English, Chinese, Vietnamese, Indonesian and Thai

External Material AL + Tempered glass

Weight
Without package: 2000g
With package: 3000g
