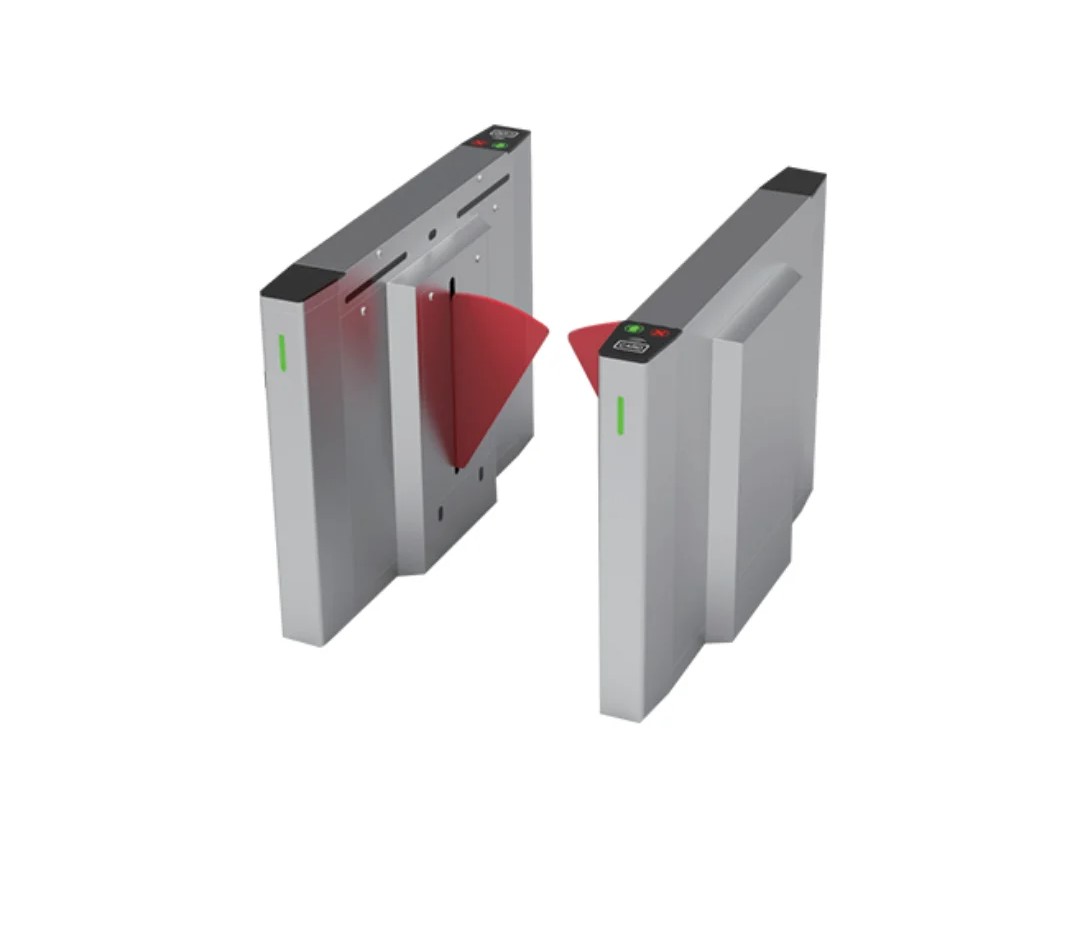

ZKTeco FBL500
Contact
The FBL500 is an elegant, cost-effective access control system designed for high traffic volumes. The FBL is a single-lane barrier turnstile designed for smooth, quiet operation and very low energy consumption.
Features
Reliability
• SUS304 stainless steel housing ensures long-lasting durability
• High-quality electrical components
Safety features
• Automatic emergency retract turnstile
• Automatic power failure retract turnstile with battery installed
Reader integration
• The FBL500 series and associated access control readers are factory tested prior to shipping
• Delivers a true plug-and-play turnstile with the lowest possible total cost of ownership in the industry
Description
Specifications:
Model Name FBL500
Barrier Material Acrylic
Barrier Movement Retracting
Cabinet Material SUS304 Stainless Steel
Dimension (L*W*H) 1360 * 280 * 980 (mm)
Emergency Mode Support
LED Indicator Support
Lane Width (mm) 600
Lid Material SUS304 Stainless Steel
MCBF 2 million
Max. Speed of Throughput 30 people per minute
Opening Noise ≤30d
Opening Time 0.8s
Power Requirements AC100 ~ 120V/200 ~ 240V, 50/60Hz
Security Level Medium
Working Environment Indoor/Outdoor (if sheltered)
Working Humidity 5% ~ 90% (non-condensing)
Working Temperature -20°C ~ 70°C
