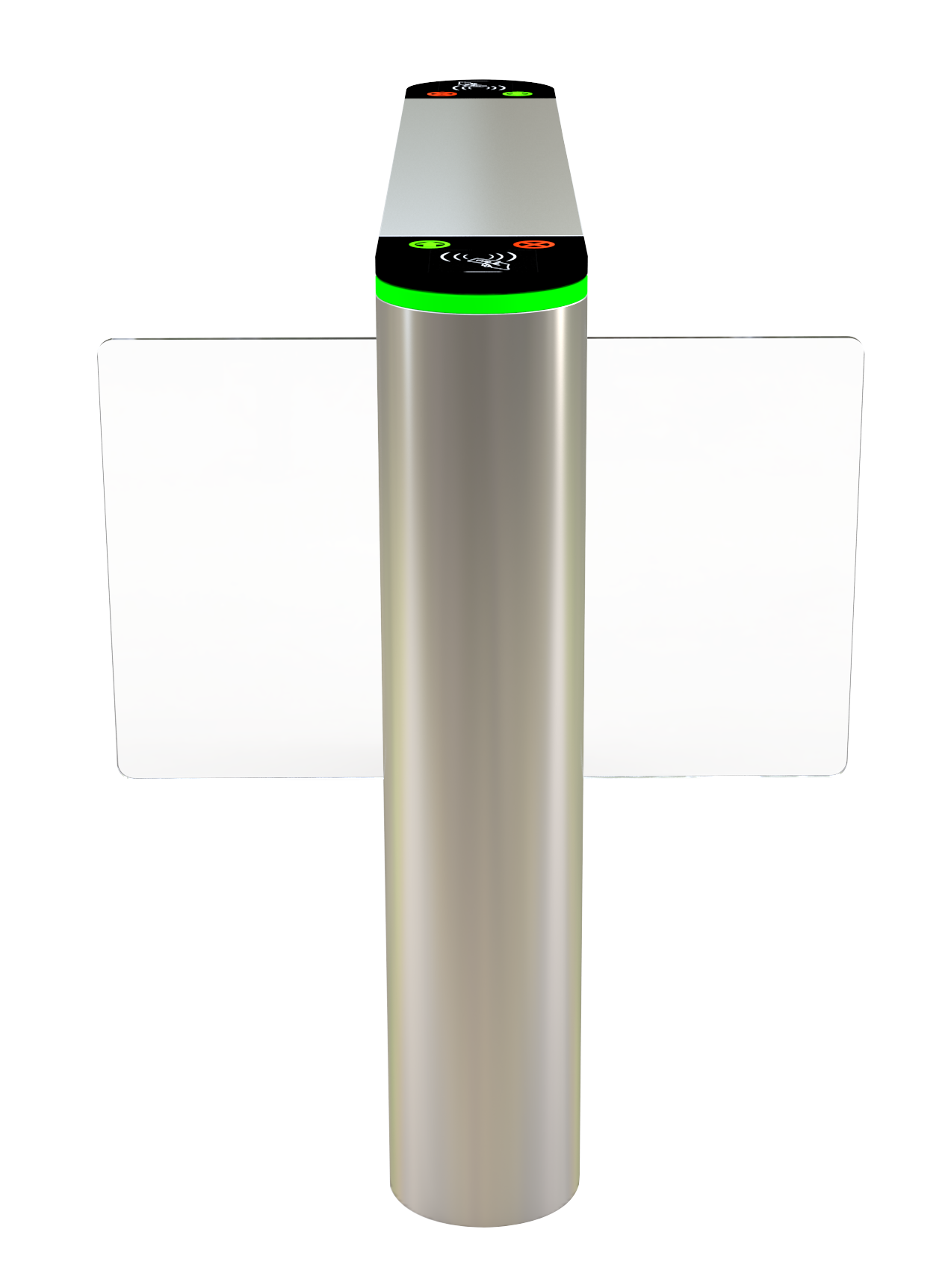

ZKTeco SBTL320
Contact
The SBTL320 is a single lane rotating barrier turnstile designed for smooth, quiet operation and low energy consumption. It is made of stainless steel for durability.
The SBTL320 barriers are typically held in a locked position, thus preventing access to the secured side.
When the SBTL320 reader (RFID and/or fingerprint) authenticates a valid user access card or fingerprint, its barriers automatically rotate, thus allowing the user to pass through to the secured side.
During a power outage, the user can easily bypass the barriers to exit safely. The SBTL320 offers both safety and space convenience, all in a compact, durable and elegant design.
Description
Specifications:
Power Requirements AC110V/220V, 50/60HZ
Working Temperature -20°C ~ 70°C
Working Humidity 5% ~ 95%
Infrared Sensor 4 pairs
Working Environment Indoor/Outdoor (if shelter)
Max. Speed of Throughput 30 people per minute
Lane Width (mm) 750
Dimensions (L*W*H) 1200 * 200 * 980 (mm)
LED Indicator Support
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel + Acrylic
Barrier Material Acrylic
Barrier Movement Swing
Emergency Mode Support
Security Level Medium
MCBF 2 million
Opening Time 0.8s
Opening Noise ≤30dB
