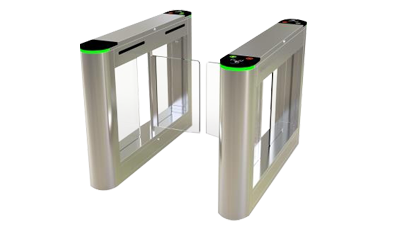

ZKTeco SBTL300
Contact
The SBTL300 is a series of single-lane turnstiles designed to operate smoothly and quietly, while consuming very little power. Made of stainless steel, the SBTL300 is highly durable.
The SBTL300 barrier is typically held in a locked position, thus preventing access to the protected side. When the SBTL300 reader (RFID and/or fingerprint) correctly identifies a valid user access card or fingerprint, the barrier will automatically rotate, thus allowing access to the protected side. In the event of a power failure, the user can easily push the barrier outwards for safe exit.
The SBTL300 provides both security and space efficiency, all in a compact, durable and elegant design.
Description
Specifications:
Barrier Material Acrylic
Barrier Movement Swing
Cabinet Material SUS304 Stainless Steel
Dimensions of Product Parts with Packaging ( L*W*H ) 1200 * 200 * 980 (mm)
Emergency Mode Support
Infrared Sensor 4 pairs
LED Indicator Support
Lid Material SUS304 Stainless Steel + Acrylic
MCBF 2 million
Max. Speed of Throughput 750
Motor Brushless Motor
Opening Noise ≤30dB
Opening Time 0.8s
Power Requirements AC110V/220V, 50/60HZ
Security Level Medium
Working Environment Indoor/Outdoor (if shelter)
Working Humidity 5% ~ 95%
Working Temperature -20°C ~ 70°C
