ZKTeco TS1011 Pro
Contact

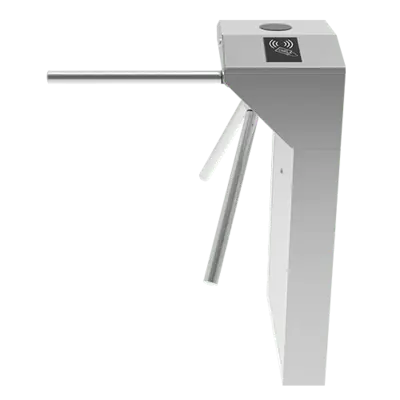

The Trpod Turnstile TS1011 Pro is designed for smooth operation with low power consumption. The product is made of stainless steel, making it very durable.
When the TS1011 Pro’s RFID reader authenticates the user’s registered card, the barriers will automatically rotate according to the direction of movement, allowing the user to enter the room. In case of emergency, the barriers will automatically return, allowing the user to freely pass through the turnstile.
Description
Specifications:
Power Supply AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Power Consumption Active 68W
Power Consumption Standby 15W
Power Consumption Unlocked 60W
Operating Temperature -28 °C – 60 °C
Operating Humidity 5%-80%
Working Environment Indoor/Outdoor (if adequately protected)
Flow of People 24 to 48 Access / Minute
Lane Width (mm) 520
Dimensions (mm) L=520, W=310, H=1010
Package Dimensions (mm) L=570, W=365, H=1080
Net Weight (kg) 35
Gross Weight (Package) (kg) 40
LED Indicator Yes
Material SUS304 Stainless Steel
Protection IP54
System Control Controlled Input by Dry Contact
Barrier Movement Rotating
Emergency Mode Yes
Other Controller C3 included with EM RFID card reader with TCP/IP connection to software
