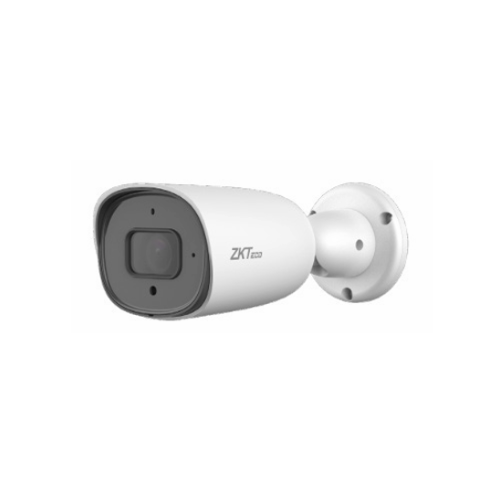

Camera giám sát dòng ZKBio Sense Lite ZKTeco BS-852E22C-S3-SE

Description

Thông số kỹ thuật:

CAMERA
Model BS-852E22C-S3-SE
Image Sensor 1/2.9” 2MP CMOS
Max.Resolution 1920(H)*1080(V)
ROM 128MB
RAM 256MB
Scanning System Progressive Scan
Electronic Shutter Speed 1/5 s to1/100,000 s
Min. Illumination
0.01Lux@F2.0 (AGC on, Color)
0 lux (IR on, B&W)
S/N Ratio >52dB
IR Range 30 m
Illuminator On/O Control Auto/Manual
Illuminator Number 2*IR LED
Smart IR Support
Angle Adjustment for Installation
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
TV System PAL/NTSC
Image Settings Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser
Software Reset Default Support
General Function Heartbeat, Mirror, Privacy mask, Log, Password reset

LENS
Lens Type Fixed Lens
Lens Mount M12
Mount Type Board-in
Focal Length 3.6mm
Max. Aperture F2.0
Optical Zoom N/A
Field of View
FOV: 85°
Horizontal: 88°
Vertical: 45°
Diagonal:105°
Iris Type Fixed
Close Focus Distance 1.5 m
DORI Distance
Lens 3.6mm
Detect 50m
Observe 19.6 m
Recognize 10m
Identify 4.3m

VIDEO
Video Compression H.265 / H.264
Resolution 1080P (1920*1080) / 1.3MP (1280*960) / 720P (1280 720) / D1 (704*576) / VGA (640*480) / Q720 (640*360)
Max Video Frame Rate
Main stream: 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720)
60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720)
Sub stream: 50Hz (PAL): 25fps (704*576, 640*480, 640*360)
60Hz (NTSC): 30fps (704*576, 640*480, 640*360)
Third stream: 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720, 704*576)
60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720, 704*576)
Video Stream Capability Triple streams
Bit Rate Control CBR / VBR
Video Bit Rate
H.264: 896kbps–6Mbps
H.265: 1024Kbps ~ 6Mbps
Day/Night Auto (ICR) / Color / B&W
BLC Support
HLC Support
WDR DWDR
Scene Self-adaptation Support
White Balance Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp
Gain Control Low, Mid low, Mid, Mid high, High
Noise Reduction 2D / 3D NR
Motion Detection Smart /Ordinary (4 areas)
Region of Interest (ROI) Support (4 areas, Level 1~6)
Defog N/A
Mirror Support
Image Rotation 0°/90°/180°/270°/Horizontal/Vertical
Privacy Masking 4 areas
Corridor Mode Support
Digital Zoom Support
Anti-flicker N/A

AUDIO
Built-in MIC N/A
Audio Compression G.711ulaw
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Bit Rate 64 Kbps (G.711ulaw)

INTELLINGENT VIDEO ANALYTICS
IVA (Perimeter Protection) Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification)
Intelligent Search Embedded intelligent classification algorithm based on computer vision technology
Intelligent Video Support fast retrieval by human & vehicle targets classification, playback and backup

FACE DETECTION
Face Templates N/A
Face Quality Filtering N/A
Face Detected Per Frame N/A
Detection Area N/A
Detected Face Size N/A
Capture Response N/A

ALARM
Basic Alarm Event Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm
Smart Alarm Event Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification)
Alarm Linkage Actions Notify surveillance center, trigger recording, trigger capture, send email

NETWORK
Simultaneous Live View Up to 15 channels
Network 1 RJ45 10 M/100 M self-adaptive Ethernet port
SDK and API Support SDK, API and ONVIF
Cyber Security
Video encryption; firmware encryption; configuration encryption; account lockout; securitylogs; lP filtering; trusted boot; trusted execution; trusted upgrade; password protection;complicated password; basic and digest authentication for HTTP/HTTPS, TLS; IP address filter; Security Audit Log
Protocol TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket
Interoperability ONVIF Profile S/T/G
User/Host Up to 256 users can be added. 3 user levels: admin, operator and guest
Network Storage FTP
Web Browser IE / Edge /Firefox / Chrome / Safari
Management Software AntarVis 2.0/ZKBioSecurity IVS/ZKBioAccess IVS/ZKBio CVSecurity/ZKBio CVAccess
Mobile Application AntarView Pro+ (iOS & Android)
On-Board Storage N/A
Operation System Windows
P2P Cloud Service Support

PORT
Audio Input N/A
Audio Output N/A
Alarm Input N/A
Alarm Output N/A

INTERFACE
Reset Button N/A
ANR N/A
USB N/A
RS485 N/A

GENERAL
Power
Power Supply PoE (IEEE802.3af,Class 3), DC 12V±10% reverse polarity protection
Power Consumption Basic 3W (12 VDC); 4.5 W (PoE)
Power Interface Ø 5.5 mm coaxial power plug
Structure
Casing Material Aluminium Alloy
Dimensions 171 * 75 * 66 (mm)
Net Weight 0.30kg
Gross Weight 0.45kg
Environment
Operating Conditions –30 °C to +60 °C (–22 °F to +140 °F)/ Humidity 95% or less (non-condensing)
Storage Conditions –30 °C to +60 °C (–22 °F to +140 °F) /Humidity 95% or less (non-condensing)
Ingress Protection Rating IP67
Certifications
Certificates ISO9001, ISO14001, CE, FCC
