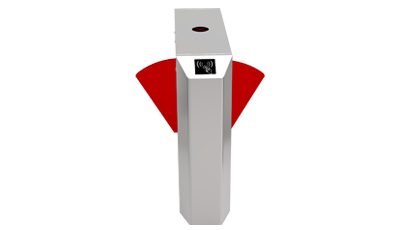

ZKTeco FBL220
Contact
The ZKTeco FBL220 Dual-Lane Flap Barrier Turnstile is an elegant, cost-effective access control system designed for high traffic volumes. The FBL220 series should be combined with the FBL200 series to form multiple lanes.
The FBL220 is an additional lane flap barrier, designed for smooth and quiet operation, while consuming very little power. Made of stainless steel, the FBL220 is highly durable.
The FBL220 turnstile is typically held in a locked position, thus preventing access to the secured side. When the FBL220 reader (RFID and/or fingerprint) correctly identifies a valid user’s access card or fingerprint, the turnstiles will automatically retract upwards, thus allowing access to the secured side.
The FBL220 offers both security and space, all in a compact, durable and elegant design.
Description
Specifications:
Power Requirements AC100 ~ 120V/200 ~ 240V, 50/60Hz
Working Temperature -28°C ~ 60°C
Working Humidity 5% ~ 80% (non-condensing)
Working Environment Indoor/Outdoor (if sheltered)
Max. Speed of Throughput 30 people per minute
Lane Width (mm) 580
Dimension (L*W*H) 1200 * 300 * 980 (mm)
LED Indicator Support
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel
Barrier Material Acrylic
Barrier Movement Retracting
Emergency Mode Support
Security Level Medium
MCBF 2 million
Opening Time 0.8s
Noise of Opening ≤30dB
